k8s权威指南demo

  1. 创建一个虚拟linux环境,本次是centos7

  2. 关闭防火墙

    1
    2
    3
    $ systemctl disable firewalld
    $ systemctl stop firewalld
    $ service iptables stop
  3. 安装etcd和k8s,docker会自动安装

    1
    $ yum install -y etcd kubernetes
  4. 加上认证

    1
    2
    3
    4
    5
    6
    7
    $ openssl genrsa -out /tmp/service_account.key 2048

    $ vim /etc/kubernetes/apiserver
    KUBE_API_ARGS="--secure-port=0 --service-account-key-file=/etc/kubernetes/service_account.key"

    $ vim /etc/kubernetes/controller-manager
    KUBE_CONTROLLER_MANAGER_ARGS="--service_account_private_key_file=/etc/kubernetes/service_account.key"
  5. 修改pod镜像的地址,因为原地址

    1
    2
    Error syncing pod, skipping: failed to "StartContainer" for "POD" with ErrImagePull: "image pull failed for registry.access.redhat.com/rhel7/pod-infrastructure:latest, this may be because there are no credentials on this request.  details: (open /etc/docker/certs.d/registry.access.redhat.com/redhat-ca.crt: no such file or directory)"
    # 需要ca验证 但是本地安装rhsm并没有用

    所以更换为docker search pod-infrastructure,并修改k8s配置文件

    1
    2
    3
    $ vim /etc/kubernetes/kubelet
    KUBELET_POD_INFRA_CONTAINER="--pod-infra-container-image=docker.io/tianyebj/pod-infrastructure:latest"
    $ systemctl restart kubelet
  6. 编写k8s的service和rc文件

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    $ vim mysql-rc.yaml

    apiVersion: v1
    kind: ReplicationController # 副本控制器 RC,kubectl生成的是rc
    metadata:
    name: mysql # rc的名称,全局唯一
    spec:
    replicas: 1 # pod的副本数量
    selector:
    app: mysql # 符合目标的Pod拥有此标签
    template: # 根据此模板创建Pod的副本(实例)
    metadata:
    labels:
    app: mysql # Pod副本拥有的标签,对应RC的selector
    spec:
    containers: # Pod内容器的定义部分
    - name: mysql # 容器名称
    image: docker.io/mysql:5.7 #!!mysql必须老版本最好5.7,新版本问题很大需要额外的环境配置
    ports:
    - containerPort: 3306 # 容器应用监听的端口号
    env: # 注入容器内的环境变量
    - name: MYSQL_ROOT_PASSWORD
    value: "123456"

    $ vim mysql-svc.yaml

    apiVersion: v1
    kind: Service # k8s的 Service
    metadata:
    name: mysql # Service的全局唯一名称
    spec:
    ports:
    - port: 3306
    selector:
    app: mysql

    $ vim myweb-rc.yaml

    apiVersion: v1
    kind: ReplicationController
    metadata:
    name: myweb
    spec:
    replicas: 1
    selector:
    app: myweb
    template:
    metadata:
    labels:
    app: myweb
    spec:
    containers:
    - name: myweb
    image: kubeguide/tomcat-app:v1
    ports:
    - containerPort: 8080

    $ vim myweb-svc.yaml

    apiVersion: v1
    kind: Service
    metadata:
    name: myweb
    spec:
    type: NodePort
    ports:
    - port: 8080
    nodePort: 30001 # 对外暴露的端口
    selector:
    app: myweb
  7. 编写k8s的启动脚本和domo的启动脚本

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    $ vim k8s.sh

    #!/bin/bash

    systemctl $1 etcd
    systemctl $1 docker
    systemctl $1 kube-apiserver
    systemctl $1 kube-controller-manager
    systemctl $1 kube-scheduler
    systemctl $1 kubelet
    systemctl $1 kube-proxy

    $ vim demo.sh

    #!/bin/bash

    kubectl $1 -f /root/kube-demo/mysql-rc.yaml
    kubectl $1 -f /root/kube-demo/mysql-svc.yaml
    kubectl $1 -f /root/kube-demo/myweb-rc.yaml
    kubectl $1 -f /root/kube-demo/myweb-svc.yaml

    $ chmod 755 k8s.sh
    $ chmod 755 demo.sh
  8. 启动demo项目

    1
    2
    $ ./k8s.sh start/stop
    $ ./demo.sh create/delete

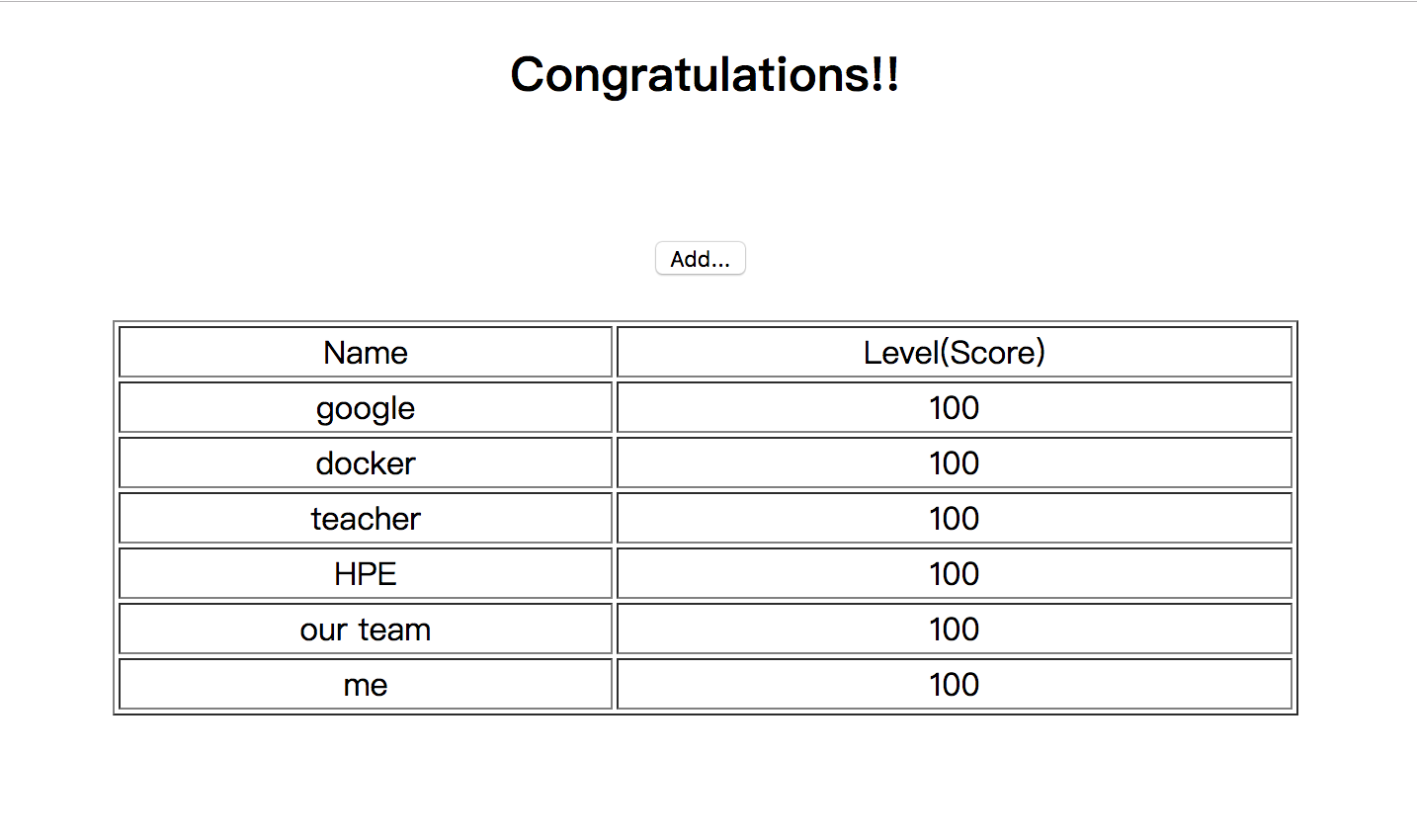

  9. 打开localhost:30001可看到tomcat的页面,/demo的页面以下:

k8sDemo
